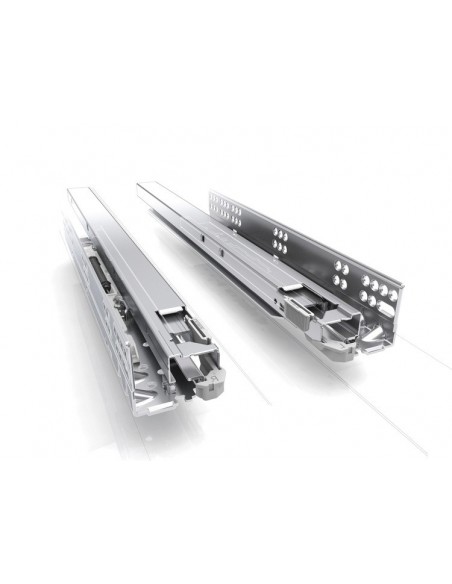

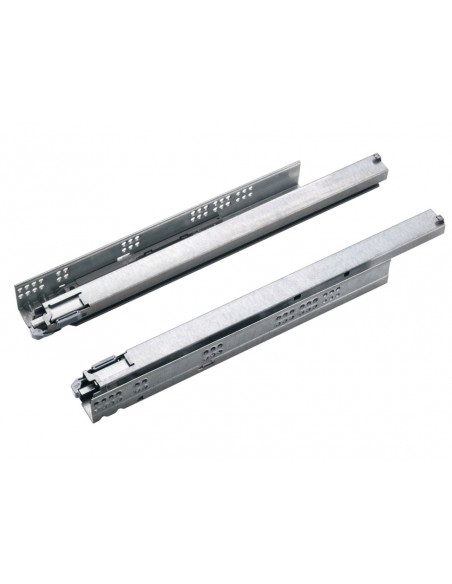

Grass Dynapro Drawer Runners 450mm Depth 40Kg Concealed Soft Close 43319608
Grass Synapro drawer runners are perfect for our solid wood drawer boxes
Many quality attributes include concealed runners that include a large carrying weight capacity of 40Kg. Slide on mounting with integrated soft close. Ensure a smooth motion is applied to any drawer or shelf.
43319608 Includes continuous self-locking of the drawer when pushed onto the drawer. The Grass Dynapro drawer runners are sold in left and right-hand pairs. Suiting 450mm nominal length. Many other depths are available.
100% fully synchronised runner giving silent, smooth operation throughout the movement of the drawer. Improved soft close function - with liquid in the damper to give continuous soft close.
Featuring revolutionary tool-less 4D adjustment, which gives vertical tilt, side-to-side, and depth adjustment (ideal for perfect alignment and accurate gaps, for in-frame and lay on applications. Lifetime guarantee.
Incredibly stable with the lowest deflection rates available. The quality runners can be used for a variety of applications. The 43319608 includes a range of adjustments as follows:
Includes height, side & tilt adjustment + 3.5mm - Side +- 1.5mm - Tilt + 4mm - Depth + 3.5mm. Please purchase screws to suit your cabinet thickness.
Front & rear clip fixings sold separately, one set required per pair of runners. Suit a drawer box (not included) 440mm length, and these are required if you wish for
Added adjustment, but it is not necessary.
Complete with a Grass lifetime warranty against manufacturing defects. Available in many depths and also available with 70Kg capacity, along with tipmatic push-to-open versions.
Features
- Full extension Dynapro
- Integrated liquid soft closing
- Full easy adjustment
- 450mm Depth
- Suits most applications
- Slide on mounting
- Self locking
- Sold in a pair
- Zinc-plated steel
- For solid wooden boxes
- Lifetime guarantee
- Screws not included

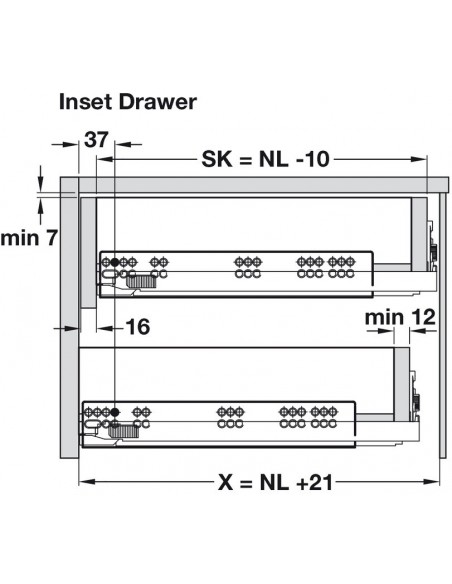

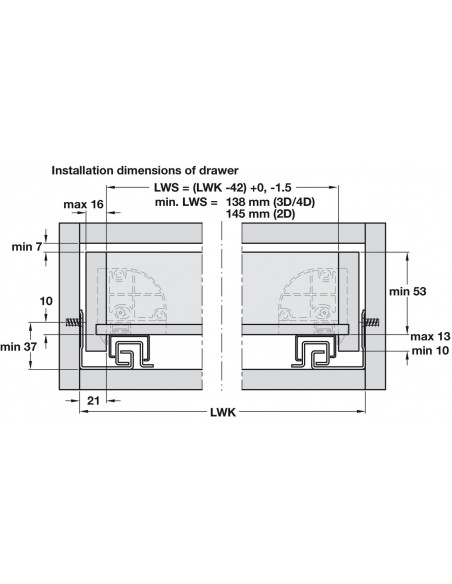

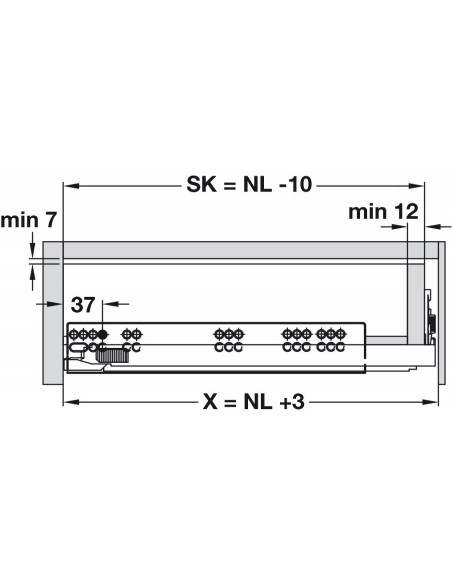

Dimensions
- 40Kg capacity
- 450mm Depth
- 3mm Extra per depth is required
- 32mm Drilling pattern
