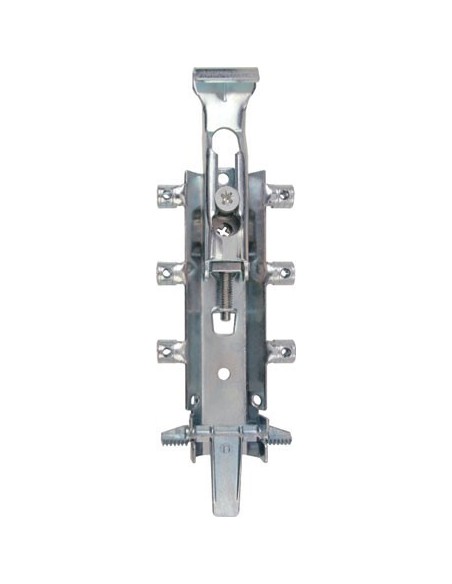

Spider Concealed Wall Cabinet Hanging Brackets X2 Dowel Screw Mount 29036910 X2 Vertical & Horizontal Adjustment, Carrying Capacity Per Pair @ 130 Kg, Unhanded

Find a better price? We'll match it

Send us the product link via email and we will do our best to provide you with an offer to match or beat. When possible! Price matching service is only valid prior to purchase/checkout.



Spider Concealed Wall Cabinet Hanging Brackets X2 Dowel Screw Mount 29036910 X2

The spider concealed wall hanging brackets are sold in a pair. Designed for fixing units to walls, the cabinet hanger is concealed behind the rear panels; only the cover cap is visible from the inside of the cabinet.

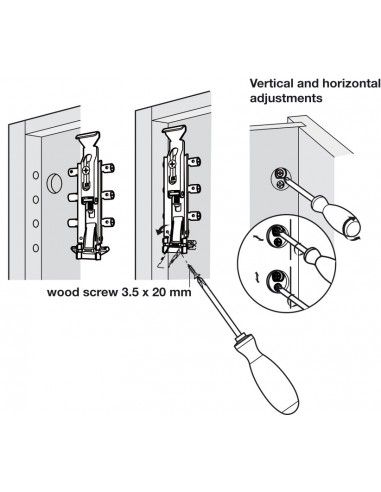

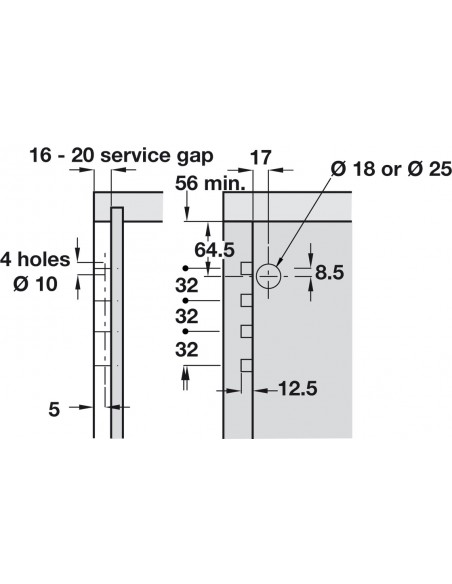

Slots into the unit side by making 4 face borings and secured in position by rotating the locking pin with ridges 180 degrees.

A 3.5 x 20mm lateral wood screw is required to permanently secure the cabinet hanger in place (screws not included). Vertical adjustment through the front gear cross socket is interconnected to the vertical bolt, which reduces the carcass adjustment effort.

Vertical adjustment 0-18mm. Horizontal 11-17mm dowel - screw mount

Spider Concealed Wall Cabinet Hanging Brackets have a load carrying capacity that applies to two hanging brackets bearing an evenly distributed load in accordance with regulation DIN68840

Features

  • Spider Concealed Wall Cabinet Hanging Brackets
  • Pair
  • Vertical adjustment 0-18mm
  • Horizontal adjustment 11-17mm
  • Load carrying capacity 130 Kg (Per pair)
  • Steel
  • Zinc plated
  • Dowel - screw mount

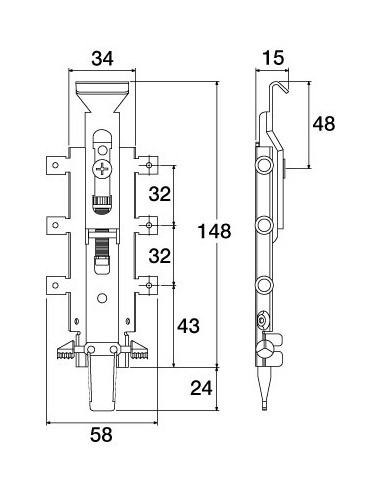

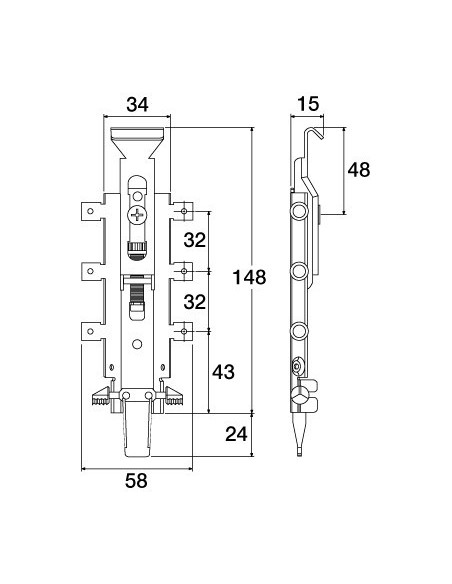

Dimensions

  • 3.5 x 20mm
  • Sold X2 peices

Use with the Spider Hanger
