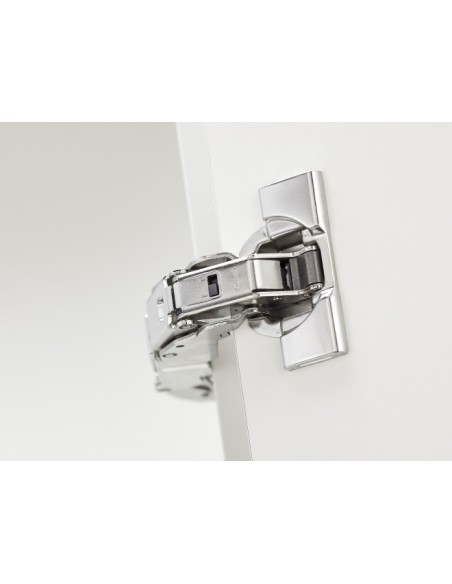

Blumotion Zero Protrusion Hinge 155 Degree Clip Top + 173L6100 Plate 71B7550 + 173L6100
71B7550 + 173L6100
In Stock
£9.99
VAT included
Blumotion Zero Protrusion Hinge 155 Degree Clip Top + 173L6100 Back Plate 71B7550
Blumotion Zero Protrusion Hinge 155 Degree Clip Top + 173L6100 Back Plate 71B7550

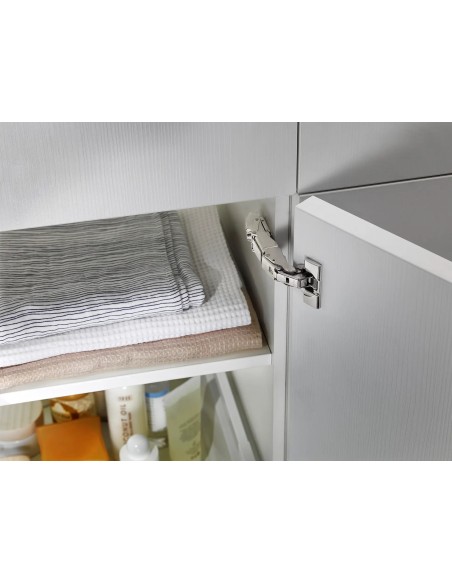

The Blumotion, soft-closing hinge & 173L6100 back plate set is perfect for use with internal drawers or pull-out larder sets. Ideal to allow the internal drawers to open successfully.
Blumotion Zero Protrusion Hinge pushes the door out &
A wide angle hinge that allows the door to be in-line with the cabinet.
The Clip-top hinge is setting new benchmarks. This sophisticated technology for perfect motion is now integrated onto the smallest possible space, discreetly in the hinge arm. Clip top Blumotion opens up so many more design possibilities for doors.
3 Dimensional front adjustment - Convenience spiral-tech depth adjustment - Compatible with all CLIP mounting plates - Tool free assembly and removal.
- Additional Information
- Brand: BLUM Type: CLIP top BLUMOTION Finish: Nickel
- Application: Overlay, Zero Protrusion
- Boss: Screw on
- Integrated Soft-Close: Yes
- Opening Angle: 155 Degree
- Closing Mechanism: Sprung
- Depth Adjustment: +3/ -2mm
- Side Adjustment: +/- 2mm
- Door Thickness: 20 - 32mm
- Material: Steel
- Fixings

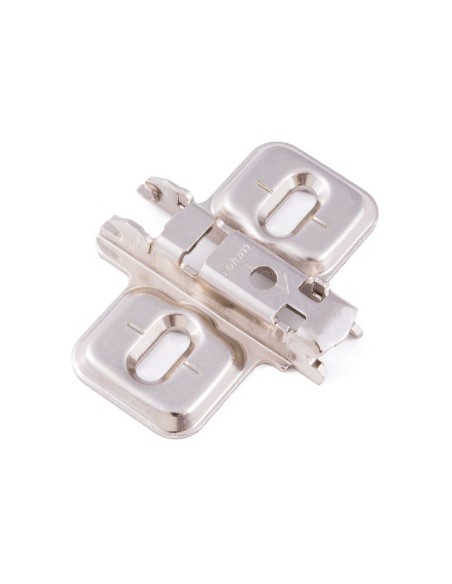

- Back plate 173L6100 included a Cruciform mounting plate to suit an 18mm carcass.
Features
- Blum quality
- Zero protrusion
- Perfect for internal drawers & larder systems
- Lifetime Manufacturer's Warranty
