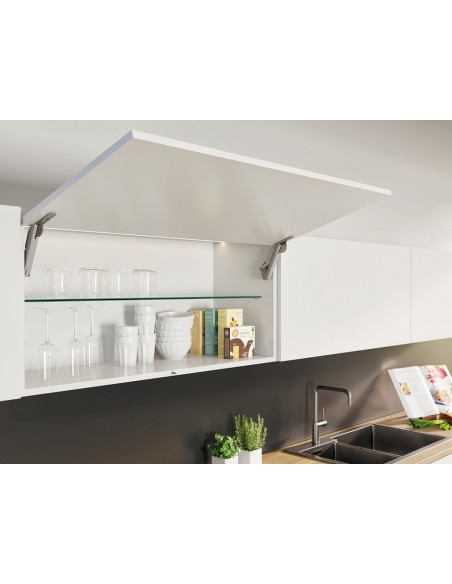

FREE space 1.8 Push flap hinge
FREE Space 1.11 Lift Up Flap Hinge Set, Grey 90/107°
FREE Space 1.11 Lift Up Flap Hinge Set, Grey 90/107°
FREE Space 1.11 Lift Up Flap Hinge Set, Grey 90/107°
FREE Space 1.11 Lift Up Flap Hinge Set, Grey 90/107°
FREE Space 1.11 Lift Up Flap Hinge Set, Grey 90/107°
FREE Space 1.11 Lift Up Flap Hinge Set, Grey 90/107°
FREE space 1.8 Push flap hinge
FREE Space 1.11 Lift Up Flap Hinge Set, Grey...
FREE Space 1.11 Lift Up Flap Hinge Set, Grey...
FREE Space 1.11 Lift Up Flap Hinge Set, Grey...
FREE Space 1.11 Lift Up Flap Hinge Set, Grey...
FREE Space 1.11 Lift Up Flap Hinge Set, Grey...
FREE Space 1.11 Lift Up Flap Hinge Set, Grey...

FREE Space 1.11 Lift Up Flap Hinge Set, Grey 90/107° 37227500

37227500
In Stock
£38.99
VAT included

FREE space flap hinge 1.11, Grey Finish Suits Single Flap Doors

Model

Find a better price? We'll match it

Send us the product link via email and we will do our best to provide you with an offer to match or beat. When possible! Price matching service is only valid prior to purchase/checkout.



FREE Space Lift Up Hinge 1.11 Grey

The latest addition to the FREE family, is the FREE Space. A brand new flap fitting thats compact, sleek & modern in design. A winner of four awards, the German manufacturer Hafele FREE space creates more storage room in the cabinet than any other fitting. The flaps allow for a more beautiful and functional design of above cabinets, Innovative stay flap fitting which, with its strong features, now also allows for use in furniture of all categories. Available in three stunning colours, this option grey, white or anthracite.

FREE space has been engineered with quick & easy installation at the forefront of design. Standard & push to open versions available. Delivered with a paper jig for marking drilling holes, or a more robust jig is also available to purchase.

Suitable for one piece flap doors made from wood, or with an aluminium frame width from 45cm. For standard flap applications with height of up to 65cm. Height, side, tilting angle & holding power adjustment. The free space utilizes space with its ultra compact design, extra space in your unit whilst minimalist design. Flat & time saving processing.

Each set includes pair of stay flap fittings (Left & right)  x 4 fitting screws, Instructions & paper template. The choice of stay flap fitting depends on the cabinet height and flap weight including your handle. Please see sample measurement table below. We recommend to use the stronger fitting model when in doubt.

Features

  • FREE space model
  • Suits single lift up doors/panels
  • Can be used with aluminium frame 45cm +
  • Sleek, flat design
  • Grey finish (White/anthracite also available)
  • Strong features
  • Won four awards!
  • Steel & nickel plated
  • Easy installation
  • Height, side tilt & hold power adjustment
  • Opening angle 90/107°
  • 25 Year guarantee

Measurements

  • Suits height up to 650mm
  • Height 173mm
  • Suits doors 16 to 28mm thick

Installation

  • Screw fit with pre-mounted euro screw
  • Front panel fitting without tools
  • Slide onto pre-mounted screws

Sample measurements table for selecting the right model based on cabinet height and flap weight including handle

Model Häfele Free space 1.11

B

C

D

E

F

Cabinet height mm

Flap weight kg

225

2,3–4,3

3,8–7,1

6,4–9,3

9,2–13,4

13,4–19,1

250

1,9–3,9

3,4–6,4

5,8–9,1

8,3–12,6

12,1–17,2

275

1,9–3,5

3,1–5,8

5,3–8,2

7,5–12,0

11,0–15,6

300

1,7–3,2

2,8–5,3

4,8–7,5

6,9–11,0

10,1–14,3

325

1,6–3,0

2,6–4,9

4,4–7,0

6,4–10,2

9,3–13,2

350

1,5–2,8

2,4–4,6

4,1–6,5

5,9–9,5

8,6–12,3

375

1,3–2,6

2,2–4,3

3,8–6,0

5,5–8,8

8,1–11,4

400

1,2–2,4

2,1–4,0

3,6–5,6

5,2–8,3

7,6–10,7

425

1,1–2,3

2,0–3,8

3,4–5,3

4,9–7,8

7,1–10,1

450

1,0–2,1

1,9–3,5

3,2–5,0

4,6–7,3

6,7–9,5

475

1,0–2,0

1,8–3,4

3,0–4,7

4,3–7,0

6,4–9,0

500

0,9–1,9

1,7–3,2

2,9–4,5

4,1–6,6

6,0–8,6

525

0,9–1,8

1,6–3,0

2,7–4,3

3,9–6,3

5,7–8,2

550

0,8–1,7

1,5–2,9

2,6–4,1

3,7–6,0

5,5–7,8

575

0,8–1,7

1,4–2,8

2,5–3,9

3,6–5,7

5,2–7,4

600

0,8–1,6

1,4–2,7

2,4–3,7

3,4–5,5

5,0–7,1

625

0,7–1,5

1,3–2,5

2,3–3,6

3,3–5,3

4,8–6,8

650

0,7–1,5

1,3–2,4

2,2–3,5

3,2–5,1

4,6–6,6

Planning

Front panel thickness Y mm

16

18

19

22

24

26

28

Distance X mm

(with cabinet top panel thickness 16 mm)

117
