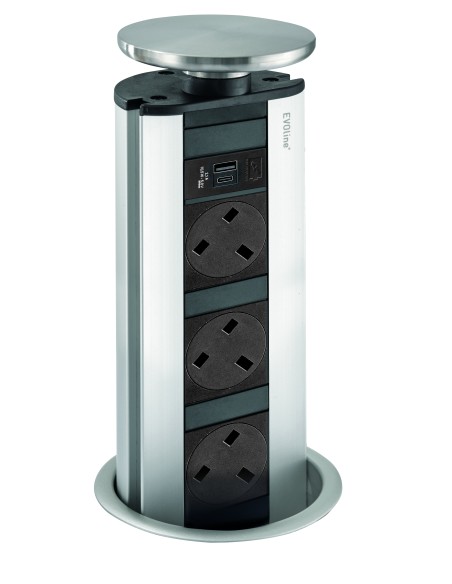

EVOline Worktop Sockets USB A+C Pop-Up Port Stainless Steel 1593 1041 5701
EVOline worktop socket pop-up port. Finished in quality, solid metal brushed stainless steel. Stainless Steel centre Cover, Plastic lacquered collar & silver anodised housing.
Complete with X3 UK socket ports & x2 USB chargers, these German manufacturers have made a kitchen accessory to last. Fully retractable even when in use, they are the centre focal point. Easy to install and can be retro-fitted.
The EVOline® worktop sockets USB pop-up Port is the designers’ choice for an intelligent integrated connectivity solution in residential and office interiors – from kitchen islands, worktops and cabinets to office desks and table legs.
1593 1041 5701 Includes a 3M power cable & 13A GB plug. X2 USB Chargers (A+C). Ideal for charging ALL versions of iPhone, iPad & similar USB-Chargeable Devices. Upgraded 18w OUTPUT.

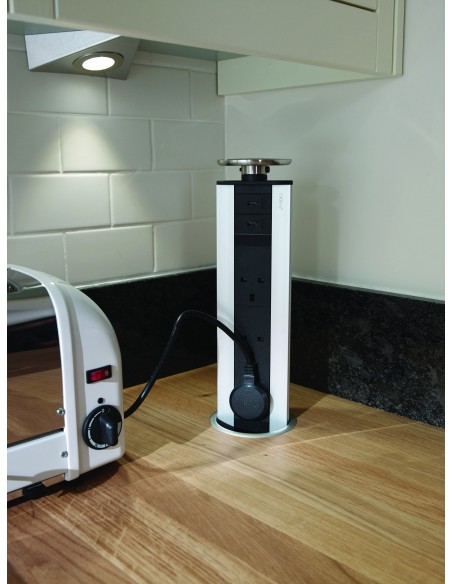

The pop-up can also be fitted to the underside of a kitchen wall cabinet. Discreet cable management solution. Perfect for kitchen islands or peninsula units where a central power source is needed, this adapter powers kettles, electric knives, and even a hoover.
The EVOline worktop sockets, USB port sockets, can be mounted in different ways into a 102mm hole in a surface with a maximum thickness of 50mm. Complete with a two-year warranty
- Into a work surface, allowing the port to be raised vertically
- In the base of a wall cabinet, the port would be pulled downwards for access
- In a vertical panel, the port is pulled out horizontally for access
- Perfect for kitchens, office, or for an island power
Available with future-proofed technology, including the high-performance Universal USB Charger.

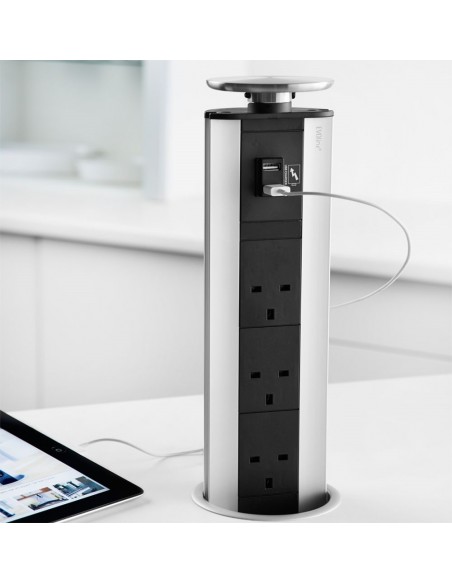

The EVOline Worktop Sockets USB can be fully retracted into the worktop whilst a device is still plugged in. The rocking cover will be on a slight angle to allow any cable(s) from the trailing plug, which is inside the socket, to exit the unit. (See image above)

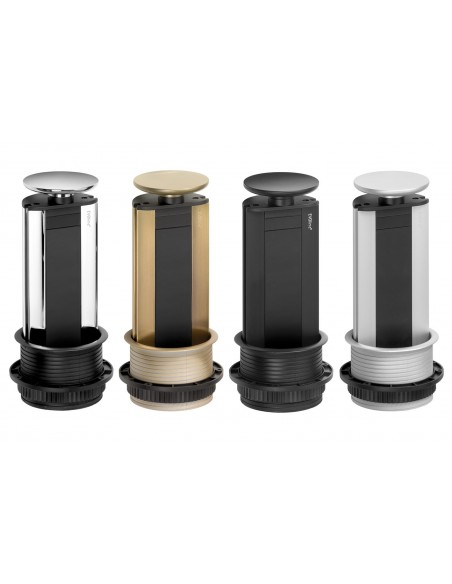

EVOline also offers the USB charging models in STAINLESS STEEL, BLACK, WHITE SILVER & FULL BLACK
UK sockets within EVOline units are either non fused or individually fused (see listing) at 3.15 amp or 5 amp.
For units being installed within a kitchen interior, the UK socket is non-fused so they can power higher loading devices such as kettles and toasters.
Units being installed in a commercial office will have individually fused sockets (3.15 amp or 5 amp) so the amount of power is limited to charging of mobiles, tablets, laptops or other small electrical devices only.
In all cases all units are fitted with a 13amp fuse within the power cable plug.
Features
- EVOline worktop sockets
- 2 USB chargers A+C
- Premium build quality
- Plastic lacquered top & silver anodised housing.
- Designed & made in Germany
- Reddot award winner
- Fully retractable, even when in use
- Stainless Steel centre Cover, Plastic lacquered collar & silver anodised housing.
- Solid stainless steel brushed
- Worktop mounted
- Connectivity all in one place
- Flexible modular system
- Performance & quality assured
- Easy to install and can be retrofitted
- Can also be installed into a wall cabinet
- Conforms to BS6396 guidelines (where applicable)
- Complete with a two-year warranty
- Upgraded 18w OUTPUT.
- Bespoke options available

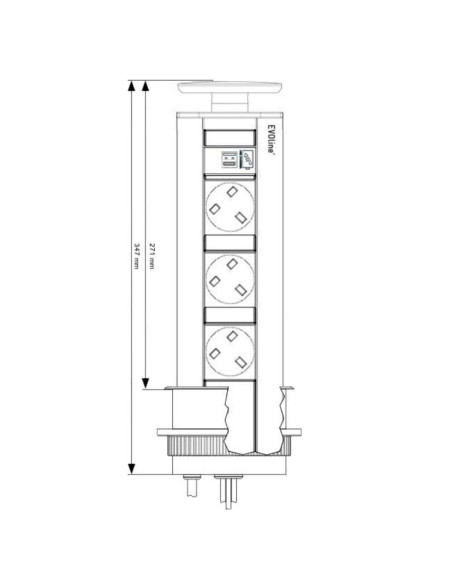

Dimensions
- To suit material 10-50mm
- Projection 271mm
- Overall 347mm
- Modern design
- Mounting hole 102mm diameter cut out
